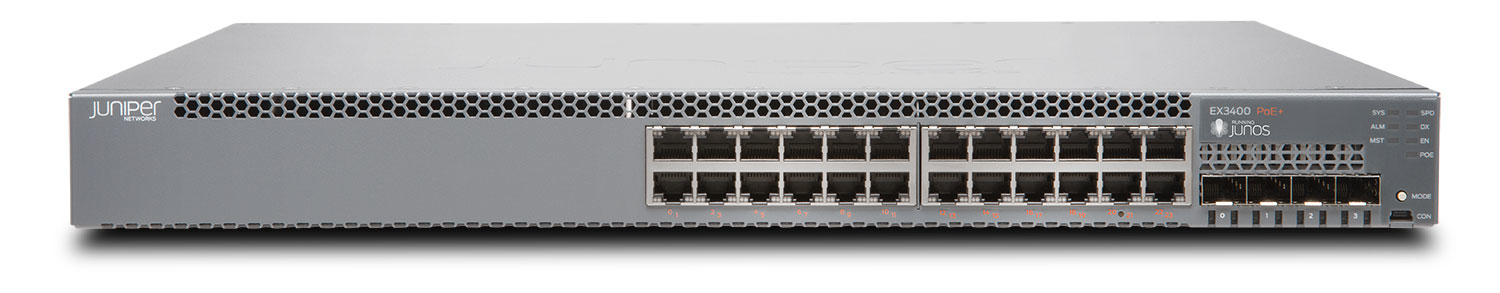

EX3400 24-PORT POE+
EX3400 24-port 10/100/1000BaseT PoE+, 4 x 1/10G SFP/SFP+, 2 x 40G QSFP+, redundant fans, front-to-back airflow, 1 AC PSU JPSU-600-AC-AFO included (optics sold separately)
Part#:
EX3400-24P
Manufacturer:
Juniper
Excl. VAT: £973.96
RRP: £3,986.00
Save: 76%
In stock
EX3400 Overview
EX3400 Ethernet Switches are a cost-effective solution for today’s most demanding converged data, voice, and video enterprise access networks. The compact, fixed-configuration 1U devices offer levels of performance and management previously available only with high-end access switches. Featuring models offering either 24 or 48 10/100/1000BASE-T ports, the EX3400 switches also support IEEE 802.3af Power over Ethernet (PoE) or 802.3at PoE+ for powering networked telephones, video cameras, wireless LAN access points, and other IP devices. Four front-panel dual-mode (GbE/10GbE) small form-factor pluggable transceiver (SFP/SFP+) uplink ports and two 40GbE quad SFP+ (QSFP+) ports are also available for connecting the switches to upstream devices. The EX3400 supports Juniper’s unique Virtual Chassis technology for interconnecting up to 10 switches that can be managed as a single device. The EX3400 can also be configured as a satellite device in a Junos Fusion Enterprise deployment, which aggregates large numbers of access switches into a logical management platform.
Innovative Switch Design
Innovative switch design reduces cost and complexity, while unified management and automation tools consolidate system monitoring.
Centralized Management
When deployed as satellite devices in a Junos Fusion Enterprise environment, large numbers of EX3400 switches can be managed from a single interface.
Eight QoS Queues
Eight QoS queues per switch port ensure proper prioritization of voice, video, and multiple levels of data traffic, with room to converge other networks, such as building automation and video security systems.
Virtual Chassis
With Virtual Chassis technology, multiple interconnected EX Series switches function as a single logical device, reducing operational expenses and simplifying management.
Carrier-Class Reliability
Based on a field-proven Juniper architecture and the Junos OS, EX Series switches deliver carrier-class reliability for every application.
High Port Densities and Wire-Speed Performance
High 1GbE and 10GbE port densities and wire-speed performance provide flexibility in creating network topologies.
EX3400 Ethernet Switches are a cost-effective solution for today’s most demanding converged data, voice, and video enterprise access networks. The compact, fixed-configuration 1U devices offer levels of performance and management previously available only with high-end access switches. Featuring models offering either 24 or 48 10/100/1000BASE-T ports, the EX3400 switches also support IEEE 802.3af Power over Ethernet (PoE) or 802.3at PoE+ for powering networked telephones, video cameras, wireless LAN access points, and other IP devices. Four front-panel dual-mode (GbE/10GbE) small form-factor pluggable transceiver (SFP/SFP+) uplink ports and two 40GbE quad SFP+ (QSFP+) ports are also available for connecting the switches to upstream devices. The EX3400 supports Juniper’s unique Virtual Chassis technology for interconnecting up to 10 switches that can be managed as a single device. The EX3400 can also be configured as a satellite device in a Junos Fusion Enterprise deployment, which aggregates large numbers of access switches into a logical management platform.
Innovative Switch Design
Innovative switch design reduces cost and complexity, while unified management and automation tools consolidate system monitoring.
Centralized Management
When deployed as satellite devices in a Junos Fusion Enterprise environment, large numbers of EX3400 switches can be managed from a single interface.
Eight QoS Queues
Eight QoS queues per switch port ensure proper prioritization of voice, video, and multiple levels of data traffic, with room to converge other networks, such as building automation and video security systems.
Virtual Chassis
With Virtual Chassis technology, multiple interconnected EX Series switches function as a single logical device, reducing operational expenses and simplifying management.
Carrier-Class Reliability
Based on a field-proven Juniper architecture and the Junos OS, EX Series switches deliver carrier-class reliability for every application.
High Port Densities and Wire-Speed Performance
High 1GbE and 10GbE port densities and wire-speed performance provide flexibility in creating network topologies.
More Information
Part#
EX3400-24P
EAN
5706998719904
Specification
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| SFP+ module slots quantity | 4 |
| QSFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| IGMP snooping | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3z |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4096 |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Virtual LAN features | Stacked VLAN, Private VLAN, Tagged VLAN, Port-based VLAN |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4096 |
| Virtual LAN features | Stacked VLAN, Private VLAN, Tagged VLAN, Port-based VLAN |
| Data transmission | |
| Number of VLANs | 4096 |
| Jumbo frames | 9216 |
| Throughput | 214 Mpps |
| MAC address table | 32000 entries |
| Switching capacity | 288 Gbit/s |
| Store-and-forward | Yes |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Technical details | |
| Form factor | 1U |
| Product colour | Grey |
| Processor frequency | 1000 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Security | |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS, PEAP, SNMP, SSH-2, TTLS |
| IGMP snooping | Yes |
| DHCP features | DHCP server, DHCP client |
| Multicast features | |
| Multicast support | Yes |
| Certificates | |
| Certification | FCC 47CFR Part 15 Class A EN 55022 Class A, ICES-003 Class A, VCCI Class A, AS/NZS CISPR 22 Class A, CISPR 22 Class A, EN 55024, EN 300386, CE, UL-UL60950-1, • C-UL to CAN/CSA 22.2 No.60950-1, TUV/GS to EN 60950-1, CB-IEC60950-1, EN 60825-1 |
| Memory | |
| Flash memory | 2000 MB |
| Design | |
| Form factor | 1U |
| Product colour | Grey |
| Certification | FCC 47CFR Part 15 Class A EN 55022 Class A, ICES-003 Class A, VCCI Class A, AS/NZS CISPR 22 Class A, CISPR 22 Class A, EN 55024, EN 300386, CE, UL-UL60950-1, • C-UL to CAN/CSA 22.2 No.60950-1, TUV/GS to EN 60950-1, CB-IEC60950-1, EN 60825-1 |
| Rack mounting | Yes |
| Performance | |
| Processor frequency | 1000 MHz |
| Flash memory | 2000 MB |
| Built-in processor | Yes |
| Harmonized System (HS) code | 85176990 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 720 W |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 4877 m |
| Weight & dimensions | |
| Width | 442 mm |
| Depth | 350 mm |
| Height | 44 mm |
| Weight | 5.74 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Manufacturer
Juniper
