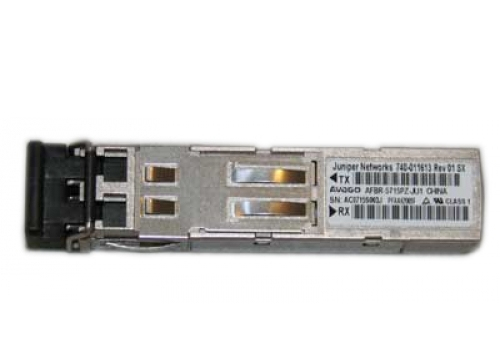

SFP FE FX TRANSCEIVER, SWITCHING/SECURIT
SFP, 100BASE-FX for Switching/Security Platforms, MMF 2 km, Extended Temperature (-5 through 70 DEGREE C), Duplex LC connector
Part#:
EX-SFP-1FE-FX
Manufacturer:
Juniper
Excl. VAT: £209.36
RRP: £512.00
Save: 59%
In stock
This is an optional uplink module for EX4200 switches support SFP, SFP+, or XFP transceivers. The Gigabit Ethernet SFP, SFP+, or XFP transceivers installed in EX4200 switches support digital optical monitoring (DOM).
Use only optical transceivers and optical connectors purchased from Juniper Networks for your EX Series switches.
Use only optical transceivers and optical connectors purchased from Juniper Networks for your EX Series switches.
More Information
Part#
EX-SFP-1FE-FX
EAN
0832938038653
Specification
| Network | |
|---|---|
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Cabling technology | 100BASE-FX |
| Maximum data transfer rate | 100 Mbit/s |
| Interface type | SFP |
| Technical details | |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Auto MDI/MDI-X | Yes |
| Maximum transfer distance | 2000 m |
| Wavelength | 1310 nm |
| Fiber cable diameters supported (core/cladding) | 62.5/125 µm |
| Tx power (min) | -20 dBmW |
| Tx power (max) | -14 dBmW |
| Rx power (min) | -32.5 dBmW |
| Rx power (max) | -8 dBmW |
| Compatible products | Juniper EX4200 |
| Cabling technology | 100BASE-FX |
| Performance | |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Compatible products | Juniper EX4200 |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Auto MDI/MDI-X | Yes |
| Maximum transfer distance | 2000 m |
| Wavelength | 1310 nm |
| Fiber cable diameters supported (core/cladding) | 62.5/125 µm |
| Tx power (min) | -20 dBmW |
| Tx power (max) | -14 dBmW |
| Rx power (min) | -32.5 dBmW |
| Rx power (max) | -8 dBmW |
| Cabling technology | 100BASE-FX |
| Maximum data transfer rate | 100 Mbit/s |
| Interface type | SFP |
| Multi-mode fiber (MMF) supported | Yes |
| SFP transceiver standard | FX |
| Features | |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Certification | MSA |
| Compatible products | Juniper EX4200 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 10 - 85% |
| Certificates | |
| Certification | MSA |
Manufacturer
Juniper
