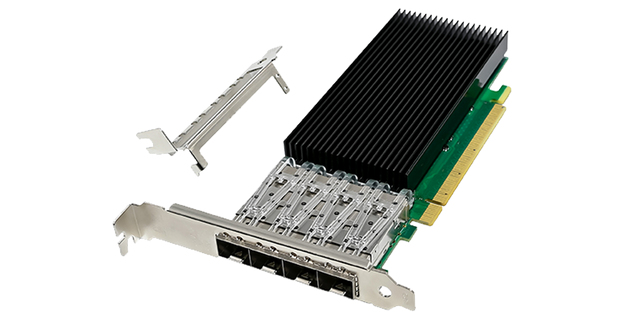

ATGBICS E810-XXVDA4-C network card Internal Ethernet 25000 Mbit/s
Intel® E810-XXVDA4, Intel E810CAM1, PCIe 4.0 x8, Quad Port, 25Gbps, 4x SFP28, 167x69mm
Part#:
E810-XXVDA4-C
Manufacturer:
ATGBICS
Excl. VAT: £422.00
In stock
Intel® E810-XXVDA4 alternative NIC PCIe 4.0 x8 Quad Port 25GbE SFP28
Intel Ethernet 800 Series network adapters with four 25GbE SFP28 ports and key performance optimizations.
The E810-XXVDA4 supports solutions across Cloud, Enterprise, and Communications and improves application efficiency and network performance with innovative and versatile capabilities.
Quad-Port SFP28
PCI Express (PCIe) 4.0 x8
Application Device Queues (ADQ)
Dynamic Device Personalization (DDP)
Supports both RDMA iWARP and RoCEv2
IEEE 1588 Precision Time Protocol (PTP)
Intel Ethernet 800 Series network adapters with four 25GbE SFP28 ports and key performance optimizations.
The E810-XXVDA4 supports solutions across Cloud, Enterprise, and Communications and improves application efficiency and network performance with innovative and versatile capabilities.
Quad-Port SFP28
PCI Express (PCIe) 4.0 x8
Application Device Queues (ADQ)
Dynamic Device Personalization (DDP)
Supports both RDMA iWARP and RoCEv2
IEEE 1588 Precision Time Protocol (PTP)
More Information
Part#
E810-XXVDA4-C
Specification
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 4.0 |
| Fiber ports quantity | 4 |
| Fiber optic connector | SFP28 |
| PCI Card form factor | Full-height (low-profile) |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 25000 Mbit/s |
| Network | |
| Chipset | Intel E810-CAM1 |
| Ethernet interface type | 10 Gigabit Ethernet, 25 Gigabit Ethernet, Gigabit Ethernet |
| Ethernet LAN | Yes |
| LAN controller | Intel E810-CAM1 |
| Ethernet LAN data rates | 1000,10000,25000 Mbit/s |
| Maximum data transfer rate | 25000 Mbit/s |
| Technical details | |
| Product colour | Green |
| PCI Card form factor | Full-height (low-profile) |
| Country of origin | China |
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS |
| Design | |
| Product colour | Green |
| Chipset | Intel E810-CAM1 |
| Internal | Yes |
| PCI Card form factor | Full-height (low-profile) |
| Country of origin | China |
| Component for | PC/Server |
| Software | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| System requirements | |
| Server operating systems supported | Windows Server 2016, Windows Server 2019, Windows Server 2022 |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Weight & dimensions | |
| Width | 167 mm |
| Depth | 69 mm |
| Performance | |
| Server operating systems supported | Windows Server 2016, Windows Server 2019, Windows Server 2022 |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Other features | |
| Chipset | Intel E810-CAM1 |
| Country of origin | China |
