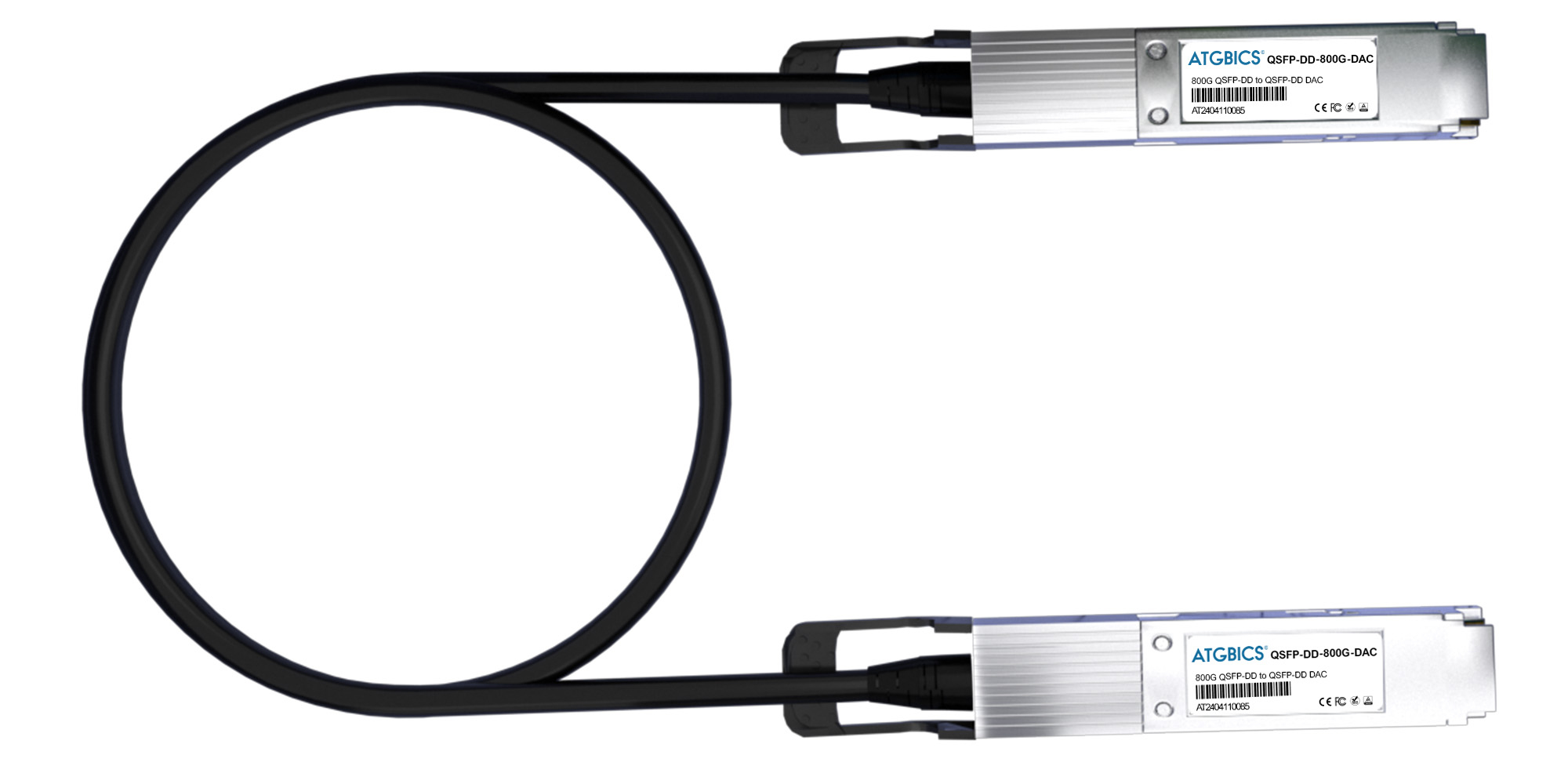

ATGBICS DAC-QSFP-DD-800G-1M Universally Coded MSA compliant Direct Attach Copper Cable 800GBase QSFP-DD (Passive Twinax 1m)
DAC-QSFP-DD-800G-1M Universally Coded MSA compliant Direct Attach Copper Cable 800GBase QSFP-DD (Passive Twinax 1m)
Part#:
DAC-QSFP-DD-800G-1M-AT
Manufacturer:
ATGBICS
Excl. VAT: £582.00
Available to Backorder: contact for lead time
ATGBICS Universally Coded MSA compliant DAC-QSFP-DD-800G-1M 800GBase-CU QSFP-DD to QSFP-DD Passive Direct Attach Cable operates over Passive Copper with a cable length of 1m. This product operates within a commercial temperature range. It is suitable for short reach connection between two QSFP-DD ports in 800G interconnecting networking applications. Our product meets the specification of Universally Coded MSA DAC-QSFP-DD-800G-1M and we proudly offer a compatibility guarantee and limited lifetime warranty. Our rigorously tested products record a unique traceable serial number and are fully compliant with all MSA (Multi-Source Agreement) and IEEE standards & protocols.
More Information
Part#
DAC-QSFP-DD-800G-1M-AT
Specification
| Features | |
|---|---|
| Jacket material | Optical fiber non-conductive riser (OFNR), Polyvinyl chloride (PVC) |
| Connector 1 | QSFP-DD |
| Connector 2 | QSFP-DD |
| Cable type | DAC |
| Cable length | 1 m |
| Data transfer rate | 800000 Gbit/s |
| Ethernet interface type | 800 Gigabit Ethernet |
| Brand compatibility | MSA Compliant |
| Export Control Classification Number (ECCN) | 5A991 |
| Product colour | Black |
| Plug and Play | Yes |
| Conductor material | Copper |
| AWG wire size | 30 |
| Cable shape | Round |
| Fastening type | Push–pull |
| Bending radius | 6.9 cm |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Certification | CE, EMC, FCC, REACH, RoHS, TÜV |
| Country of origin | United Kingdom |
| Sustainability | |
| Doesn't contain | Lead, Halogen |
| Certificates | |
| Certification | CE, EMC, FCC, REACH, RoHS, TÜV |
| Compliance certificates | TÜV mark, UKCA, Electromagnetic Compatibility (EMC), REACH, Federal Communications Commission (FCC), RoHS, CE |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
| Bending radius | 6.9 cm |
| Cable length | 1 m |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Jacket material | Optical fiber non-conductive riser (OFNR), Polyvinyl chloride (PVC) |
| Connector 1 | QSFP-DD |
| Connector 2 | QSFP-DD |
| Cable type | DAC |
| Cable length | 1 m |
| Doesn't contain | Lead, Halogen |
| Compliance certificates | TÜV mark, UKCA, Electromagnetic Compatibility (EMC), REACH, Federal Communications Commission (FCC), RoHS, CE |
| Data transmission | |
| Data transfer rate | 800000 Gbit/s |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Country of origin | United Kingdom |
Manufacturer
ATGBICS
PDF Url
