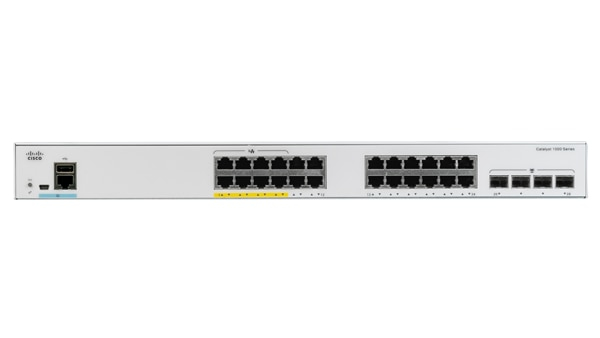

Catalyst 1000 24port GE, Full POE, 4x10G SFP REMANUFACTURED
Managed L2 ,24 x 10/100/1000 Ethernet PoE+ ports and 370W PoE budget, 4 x 10G SFP+ uplinks, ARM7 800 MHz, 128 Gbit/s, Full POE
Part#:
C1000-24FP-4X-L-RF
Manufacturer:
Cisco
Excl. VAT: £1,242.18
RRP: £2,544.61
Save: 51%
Available to Backorder: contact for lead time
Catalyst 1000 24port GE, Full POE, 4x10G SFP REMANUFACTURED
More Information
Part#
C1000-24FP-4X-L-RF
EAN
0889728442671
Specification
| Management features | |
|---|---|
| Multicast support | Yes |
| Traffic classification | Yes |
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| MIB support | Yes |
| Switch layer | L2 |
| Configuring Location Settings (CLI) | Yes |
| Network | |
| IGMP snooping | Yes |
| IPv6 multicast entries | 1024 |
| IPv4 multicast entries | 1024 |
| IGMP entries | 1024 |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 4094 |
| Link aggregation | Yes |
| Ethernet LAN data rates | 100,1000,10000 Mbit/s |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Data transmission | |
| Number of VLANs | 4094 |
| Jumbo frames | 10240 |
| Number of static routes | 16 |
| MAC address table | 16000 entries |
| Switching capacity | 128 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 41.67 Mpps |
| Technical details | |
| Product colour | Grey |
| Processor frequency | 800 MHz |
| Mean time between failures (MTBF) | 698220 h |
| Built-in processor | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| USB 2.0 ports quantity | 1 |
| Console port | RJ-45/Mini-USB |
| Security | |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Authentication | Web-based authentication |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | RADIUS |
| IGMP entries | 1024 |
| DHCP features | DHCP snooping |
| Multicast features | |
| Multicast support | Yes |
| IPv6 multicast entries | 1024 |
| IPv4 multicast entries | 1024 |
| Memory | |
| Memory type | DRAM |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Design | |
| Product colour | Grey |
| LED indicators | Yes |
| Performance | |
| Processor frequency | 800 MHz |
| Memory type | DRAM |
| Mean time between failures (MTBF) | 698220 h |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Built-in processor | Yes |
| Processor model | ARM7 |
| Harmonized System (HS) code | 85176990 |
| Indication | |
| LED indicators | Yes |
| Power | |
| AC input voltage | 110 - 220 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 370 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -25 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -5 - 50 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 4500 m |
| Weight & dimensions | |
| Width | 444.5 mm |
| Depth | 345 mm |
| Height | 44 mm |
| Weight | 4.6 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Ethernet LAN data rates | 100,1000,10000 Mbit/s |
Manufacturer
Cisco
