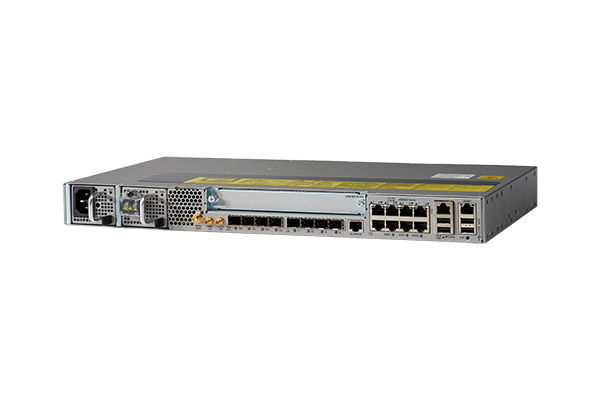

Cisco ASR920 Series - 12GE and 4-10GE, 1 IM slot
8x1G copper + 4x1G SFP + 4x10G/1G SFP+, PoE, 1RU
Part#:
ASR-920-12SZ-IM
Manufacturer:
Cisco
Excl. VAT: £4,415.53
RRP: £7,443.99
Save: 41%
Available to Backorder: contact for lead time
The Cisco® ASR 920 Series Aggregation Services Router is a full-featured converged access platform designed for the cost-effective delivery of wireline and wireless services. These temperature-hardened, high-throughput, small-form-factor,low-power-consumption routers are optimized for mobile backhaul and business applications. ASR 920 routers provide a comprehensive and scalable feature set, supporting both Layer 2 VPN (L2VPN) and Layer 3 VPN (L3VPN) services in a compact package. They also allow service providers to deploy Multiprotocol Label Switching (MPLS)-based VPN services from within the access layer.
ASR 920 series router offers key Carrier Ethernet features that simplify network operation. You can use them for premium services with enhanced service-level agreements (SLAs). And an optional service-activation model supports incremental growth and makes these routers flexible and cost-effective.
ASR 920 series router offers key Carrier Ethernet features that simplify network operation. You can use them for premium services with enhanced service-level agreements (SLAs). And an optional service-activation model supports incremental growth and makes these routers flexible and cost-effective.
More Information
Part#
ASR-920-12SZ-IM
EAN
0882658822810
Specification
Ethernet LAN features | |
---|---|
Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
Ethernet LAN | Yes |
Performance | |
Mean time between failures (MTBF) | 407230 h |
Hot-swap | Yes |
WAN connection | |
Ethernet WAN | Yes |
DSL WAN | No |
SIM card slot | No |
3G/4G USB modem compatibility | No |
Network | |
Networking standards | IEEE 802.3x |
Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
Switching capacity | 64 Gbit/s |
Ethernet LAN | Yes |
Management features | |
Web-based management | Yes |
Quality of Service (QoS) support | Yes |
Ports & interfaces | |
Gigabit Ethernet (copper) ports quantity | 8 |
Power over Ethernet (PoE) ports quantity | 8 |
USB ports quantity | 2 |
Ethernet LAN (RJ-45) ports | 8 |
RS-232 ports | 2 |
Number of switching fabric slots | 8 |
Technical details | |
Rack mounting | Yes |
Switching capacity | 64 Gbit/s |
Mean time between failures (MTBF) | 407230 h |
LED indicators | Yes |
Product colour | Grey |
Security | |
Security algorithms | IPSec |
Access Control List (ACL) | Yes |
Features | |
Safety | UL 60950-1, 2005, CAN/CSA C22.2 No. 60950-1: 2005, IEC 60950-1, 2005, EN 60950-1, 2005, AS/NZS 60950.1:2005 |
Mean time between failures (MTBF) | 407230 h |
Electromagnetic compatibility | FCC CFR47 Part 15 Class A |
Hot-swap | Yes |
Design | |
Wall mountable | Yes |
Rack mounting | Yes |
LED indicators | Yes |
Product colour | Grey |
Rack capacity | 1U |
Antenna | |
Antenna type | Not supported |
Power | |
Power source type | AC, DC, PoE |
AC input voltage | 100 - 240 V |
AC input frequency | 50 - 60 Hz |
Power over Ethernet (PoE) | Yes |
Power consumption (typical) | 130 W |
Operational conditions | |
Operating temperature (T-T) | -40 - 70 °C |
Storage temperature (T-T) | -40 - 70 °C |
Operating relative humidity (H-H) | 5 - 95% |
Non-operating altitude | 0 - 4570 m |
Weight & dimensions | |
Width | 444.5 mm |
Depth | 286.5 mm |
Height | 44 mm |
Weight | 4.83 kg |
Certificates | |
Safety | UL 60950-1, 2005, CAN/CSA C22.2 No. 60950-1: 2005, IEC 60950-1, 2005, EN 60950-1, 2005, AS/NZS 60950.1:2005 |
Electromagnetic compatibility | FCC CFR47 Part 15 Class A |
Other features | |
Switching capacity | 64 Gbit/s |
Manufacturer
Cisco
