ASR 9001 Chassis REMANUFACTURED
4x 10GE, 2 RU, 240 Gbps, IOS XR, Refurbished
Part#:
ASR-9001-RF
Manufacturer:
Cisco
Excl. VAT: £10,671.49
RRP: £34,977.22
Save: 69%
Available to Backorder: contact for lead time

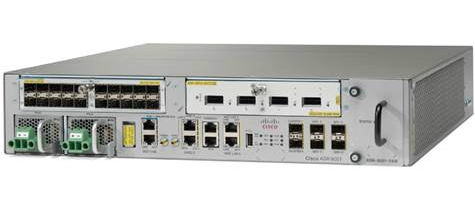

The Cisco ASR 9001 is a compact, high-capacity, provider-edge router that delivers 120 Gbps of nonblocking, full-duplex fabric capacity in a 2-rack-unit (2RU) form factor.
Part of the Cisco ASR 9000 Series, the ASR 9001 is based on the same Cisco IOS XR Software image and delivers the same features and services, allowing customers to standardize on the same Cisco IOS-XR image.
The Cisco ASR 9001 has an integrated route switch processor (RSP) and two modular bays, which support 1 Gigabit Ethernet, 10 Gigabit Ethernet, and 40 Gigabit Ethernet modular port adapters. The base chassis has four integrated 10 Gigabit Ethernet enhanced Small Form-Factor Pluggable (SFP+) ports, a GPS input for Stratum 1 clocking, BITS ports, and management ports.
Part of the Cisco ASR 9000 Series, the ASR 9001 is based on the same Cisco IOS XR Software image and delivers the same features and services, allowing customers to standardize on the same Cisco IOS-XR image.
The Cisco ASR 9001 has an integrated route switch processor (RSP) and two modular bays, which support 1 Gigabit Ethernet, 10 Gigabit Ethernet, and 40 Gigabit Ethernet modular port adapters. The base chassis has four integrated 10 Gigabit Ethernet enhanced Small Form-Factor Pluggable (SFP+) ports, a GPS input for Stratum 1 clocking, BITS ports, and management ports.
More Information
Part#
ASR-9001-RF
EAN
0882658696862
Specification
| Ethernet LAN features | |
|---|---|
| Ethernet LAN data rates | 1000,10000 Mbit/s |
| Memory | |
| Internal memory | 8000 MB |
| Performance | |
| Internal memory type | DRAM |
| Internal memory | 8000 MB |
| Network | |
| Port forwarding | Yes |
| Ethernet LAN data rates | 1000,10000 Mbit/s |
| Ethernet interface type | 10 Gigabit Ethernet |
| Management features | |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| USB ports quantity | 1 |
| Installed SFP+ modules quantity | 4 |
| Protocols | |
| Supported network protocols | IPv4, IPv6, L3VPN |
| Technical details | |
| On/off switch | Yes |
| Rack mounting | Yes |
| LED indicators | Yes |
| Product colour | Grey |
| Security | |
| Access Control List (ACL) | Yes |
| Features | |
| Internal memory type | DRAM |
| Safety | UL/CSA/IEC/EN 60950-1, IEC/EN 60825 Laser Safety, ACA TS001, AS/NZS 60950, FDA: Code of Federal Regulations Laser Safety |
| Internal memory | 8000 MB |
| Electromagnetic compatibility | FCC Class A, ICES 003 Class A, AS/NZS 3548 Class A, CISPR 22 (EN55022) Class A, VCCI Class A, BSMI Class A, IEC/EN 61000-3-2: Power Line Harmonics, IEC/EN 61000-3-3: Voltage Fluctuations and Flicker, EN 50121-4: Railway EMC |
| Design | |
| On/off switch | Yes |
| Rack mounting | Yes |
| LED indicators | Yes |
| Product colour | Grey |
| Rack capacity | 2U |
| Power | |
| Power source type | AC, DC |
| AC input voltage | 90 - 265 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 425 W |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -5 - 55 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 442 mm |
| Depth | 470 mm |
| Height | 88.2 mm |
| Weight | 13.7 kg |
| Certificates | |
| Safety | UL/CSA/IEC/EN 60950-1, IEC/EN 60825 Laser Safety, ACA TS001, AS/NZS 60950, FDA: Code of Federal Regulations Laser Safety |
| Electromagnetic compatibility | FCC Class A, ICES 003 Class A, AS/NZS 3548 Class A, CISPR 22 (EN55022) Class A, VCCI Class A, BSMI Class A, IEC/EN 61000-3-2: Power Line Harmonics, IEC/EN 61000-3-3: Voltage Fluctuations and Flicker, EN 50121-4: Railway EMC |
Manufacturer
Cisco
