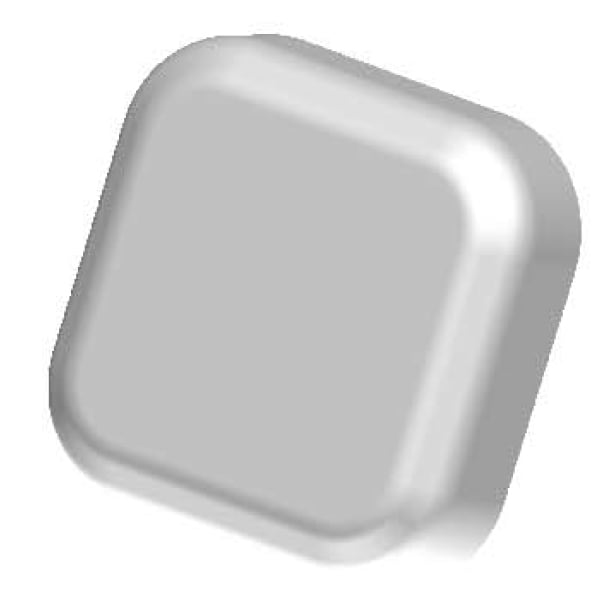

Multiband Panel Outdoor 4G Antenna
Cisco Multiband Panel Outdoor 4G MIMO Antenna (ANT-4G-PNL-OUT-N)
Part#:
ANT-4G-PNL-OUT-N
Manufacturer:
Cisco
Excl. VAT: £369.07
Available to Backorder: contact for lead time
Multiband Panel Outdoor 4G Antenna
More Information
Part#
ANT-4G-PNL-OUT-N
Specification
| Performance | |
|---|---|
| Bandwidth note | 1710 - 2700 MHz |
| Antenna gain level (max) | 10 dBi |
| Frequency band | 0.698 - 0.96 / 1.71 - 2.17 / 2.3 - 2.7 GHz |
| Impedance | 50 Ω |
| Antenna gain (5 GHz) | 9.5 dBi |
| Antenna gain (2.4 GHz) | 8.5 dBi |
| Features | |
| Survival wind speed | 160 km/h |
| International Protection (IP) code | IP55 |
| Antenna type | Omni-directional antenna |
| Product colour | White |
| Antenna gain level (max) | 10 dBi |
| Frequency band | 0.698 - 0.96 / 1.71 - 2.17 / 2.3 - 2.7 GHz |
| Impedance | 50 Ω |
| Certification | CE, RoHS |
| Antenna gain (5 GHz) | 9.5 dBi |
| Antenna gain (2.4 GHz) | 8.5 dBi |
| Certificates | |
| Certification | CE, RoHS |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
| Weight | 1.46 kg |
| Width | 29.5 mm |
| Depth | 29.5 mm |
| Height | 82 mm |
| Technical details | |
| Antenna gain level (max) | 10 dBi |
| Frequency band | 0.698 - 0.96 / 1.71 - 2.17 / 2.3 - 2.7 GHz |
| Antenna type | Omni-directional antenna |
| Impedance | 50 Ω |
| Antenna gain (5 GHz) | 9.5 dBi |
| Antenna gain (2.4 GHz) | 8.5 dBi |
| Compliance certificates | RoHS |
| Colour | |
| Product colour | White |
| Packaging content | |
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
Manufacturer
Cisco
