2 in 1 outdoor antenna- 4G/LTE-2

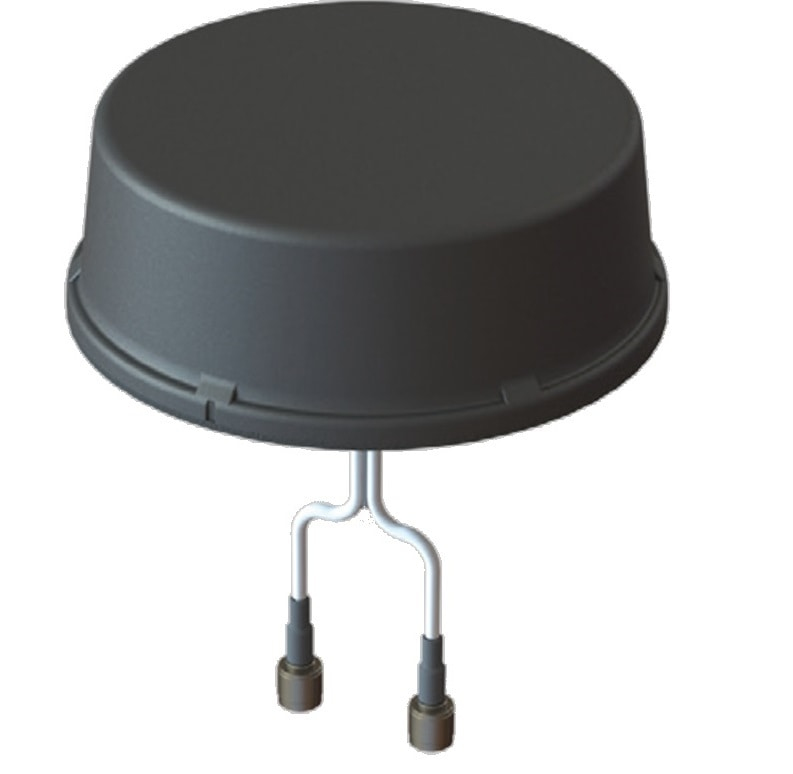

Cellular 2-in-1 Vehicle Mount and Fixed Infrastructure Antenna
Part#:
ANT-2-4G2-O=
Manufacturer:
Cisco
Excl. VAT: £262.42
RRP: £345.06
Save: 24%
Available to Backorder: contact for lead time
This section describes the technical specifications and installation instructions for the Cisco Cellular 2-in-1 Vehicle Mount and Fixed Infrastructure Antenna, hereafter referred to as the antenna. The antenna is a two port antenna with two elements designed to cover the 698-960, 1448-1511, and 1710-2700 MHz cellular bands. The antenna can be mounted on the roof of a vehicle or fixed structure. The antenna meets or exceeds a variety of environmental ruggedization specifications for transportation applications.
More Information
Part#
ANT-2-4G2-O=
EAN
0882658977619
Specification
| Performance | |
|---|---|
| Antenna gain level (max) | 5.5 dBi |
| Impedance | 50 Ω |
| Features | |
| Housing material | Polycarbonate (PC) |
| International Protection (IP) code | IP67 |
| Connector gender | Male |
| Antenna gain level (max) | 5.5 dBi |
| Antenna type | Omni-directional antenna |
| Impedance | 50 Ω |
| Product colour | Black |
| Antenna connector type | TNC |
| Technical details | |
| Antenna gain level (max) | 5.5 dBi |
| Antenna type | Omni-directional antenna |
| Impedance | 50 Ω |
| Antenna connector type | TNC |
| Colour | |
| Product colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
| Weight | 670 g |
| Diameter | 18 cm |
Manufacturer
Cisco
