HPE AM225A - Intgrity 10GbE-SR PCIe Renew Adapter
HPE Integrity PCIe 2-port 10GbE-SR Fabric Renew Adapter
Part#:
AM225AR
Manufacturer:
HPE
Excl. VAT: £2,979.99
RRP: £3,368.00
Save: 12%
Available to Backorder: contact for lead time

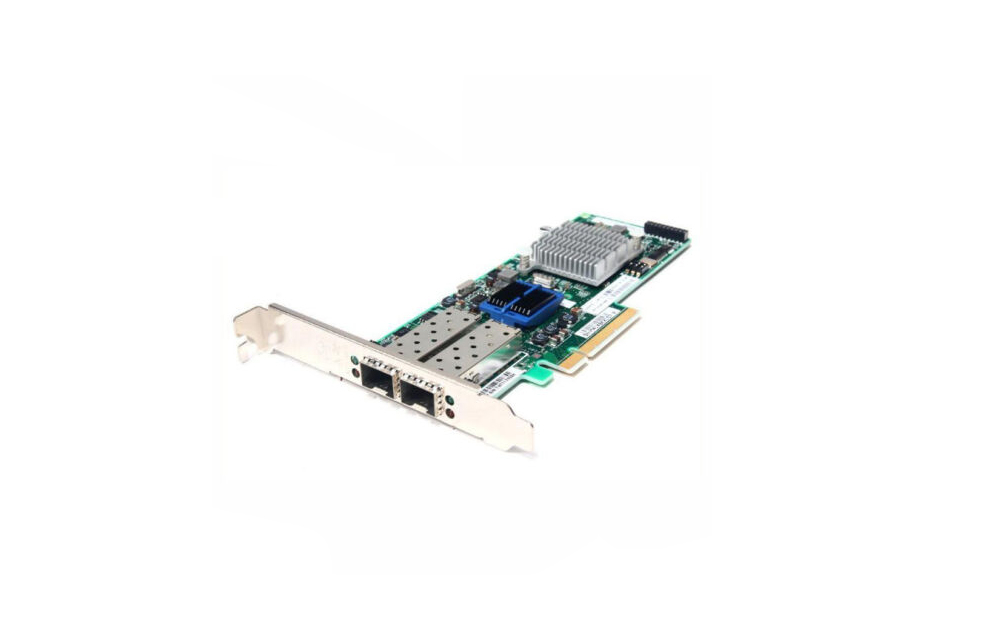

The HPE Integrity PCI-e 2-port 10GbE Adapter is an eight lane (x8) PCI Express (PCIe) 10 Gigabit network solution offering optimal throughput. This PCI Express Gen 2 adapter ships with two SFP+ (Small Form-factor Pluggable) cages suitable for connecting to Direct Attach Cable (DAC) or fiber modules supporting SR or LR fiber optic cabling.
The card ships with advanced server features such as support for TCP checksum and segmentation, VLAN tagging, QoS, and 9K Jumbo frames. Easy to install and configure, the card can be used in either standard or low profile slots.
The card ships with advanced server features such as support for TCP checksum and segmentation, VLAN tagging, QoS, and 9K Jumbo frames. Easy to install and configure, the card can be used in either standard or low profile slots.
More Information
Part#
AM225AR
Specification
Ports & interfaces | |
---|---|
Internal | Yes |
PCI version | 2.0 |
Fiber ports quantity | 2 |
Fiber optic connector | SFP+ |
PCI Card form factor | Full-height (low-profile) |
Interface | Ethernet / Fiber |
Host interface | PCI Express |
Connectivity technology | Wired |
Bandwidth | |
Full duplex | Yes |
Maximum data transfer rate | 10000 Mbit/s |
Technical details | |
PCI Card form factor | Full-height (low-profile) |
Network | |
Networking standards | IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1p, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3x |
Jumbo frames support | Yes |
Full duplex | Yes |
Maximum data transfer rate | 10000 Mbit/s |
Design | |
Internal | Yes |
PCI Card form factor | Full-height (low-profile) |
Component for | Server |
Weight & dimensions | |
Width | 120 mm |
Depth | 181 mm |
Height | 20 mm |
Manufacturer
HPE
