802.11NOutdrMeshAP,Haz.Loc.,QReg.Dom,PoEPwr REMANUFACTURED

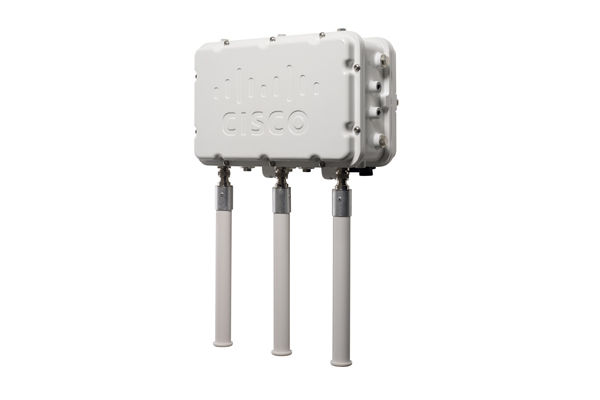

Cisco Aironet 1552H Hazardous Location Access Point, IP67, Q Regulatory Domain
Part#:
AIR-CAP1552HQK9-RF
Manufacturer:
Cisco
Excl. VAT: £2,954.47
Available to Backorder: contact for lead time
802.11NOutdrMeshAP,Haz.Loc.,QReg.Dom,PoEPwr REMANUFACTURED
More Information
Part#
AIR-CAP1552HQK9-RF
Specification
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 300 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Automatic channel selection | Yes |
| Transmitting power | 28 dBmW |
| Frequency band | 2.4 - 2.4835, 5.47 - 5.725 GHz |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af |
| Management platform | Radio Resource Management (RRM) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Channels quantity | 24 channels |
| Channel bandwidth | 40 MHz |
| Certification | UL 60950, Second Edition CAN/CSA-C22.2 No. 60950, SecondEdition IEC 60950, SecondEdition EN 60950, SecondEdition ANSI/IEEE C62.41 EN61000-4-5 Level 4 AC Surge Immunity EN61000-4-4 Level 4 Electrical Fast Transient Burst Immunity EN61000-4-3 Level 4 EMC Field Immunity EN61000-4-2 Level 4 ESD Immunity EN60950 Overvoltage Category IV FCC Part 15.247, 15.407 FCC Bulletin OET-65C RSS-210 RSS-102 AS/NZS 4268.2003 ARIB-STD 66 (Japan) ARIB-STD T71 (Japan) EN 300 328 EN 301 893 FCC part 15.107, 15.109 ICES-003 EN 301 489-1, -17 |
| Maximum data transfer rate | 300 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Wireless LAN features | |
| Frequency band | 2.4 - 2.4835, 5.47 - 5.725 GHz |
| Channels quantity | 24 channels |
| Network | |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af |
| Bandwidth | |
| Channel bandwidth | 40 MHz |
| Management features | |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Management platform | Radio Resource Management (RRM) |
| Certificates | |
| Certification | UL 60950, Second Edition CAN/CSA-C22.2 No. 60950, SecondEdition IEC 60950, SecondEdition EN 60950, SecondEdition ANSI/IEEE C62.41 EN61000-4-5 Level 4 AC Surge Immunity EN61000-4-4 Level 4 Electrical Fast Transient Burst Immunity EN61000-4-3 Level 4 EMC Field Immunity EN61000-4-2 Level 4 ESD Immunity EN60950 Overvoltage Category IV FCC Part 15.247, 15.407 FCC Bulletin OET-65C RSS-210 RSS-102 AS/NZS 4268.2003 ARIB-STD 66 (Japan) ARIB-STD T71 (Japan) EN 300 328 EN 301 893 FCC part 15.107, 15.109 ICES-003 EN 301 489-1, -17 |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Automatic channel selection | Yes |
| Transmitting power | 28 dBmW |
| Frequency band | 2.4 - 2.4835, 5.47 - 5.725 GHz |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Channels quantity | 24 channels |
| Channel bandwidth | 40 MHz |
| Maximum data transfer rate | 300 Mbit/s |
| Dynamic Frequency Selection (DFS) | Yes |
| Data unit aggregation | A-MSDU, A-MPDU |
| Cyclic Shift Diversity (CSD) | Yes |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Security | |
| Security algorithms | AES, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, IPSec, TKIP, WPA, WPA2 |
| MAC address filtering | Yes |
| Ports & interfaces | |
| WAN connection | Ethernet (RJ-45) |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Design | |
| International Protection (IP) code | IP67 |
| Placement | Pole, Wall |
| Product colour | White |
| LED indicators | Yes |
| Certification | UL 60950, Second Edition CAN/CSA-C22.2 No. 60950, SecondEdition IEC 60950, SecondEdition EN 60950, SecondEdition ANSI/IEEE C62.41 EN61000-4-5 Level 4 AC Surge Immunity EN61000-4-4 Level 4 Electrical Fast Transient Burst Immunity EN61000-4-3 Level 4 EMC Field Immunity EN61000-4-2 Level 4 ESD Immunity EN60950 Overvoltage Category IV FCC Part 15.247, 15.407 FCC Bulletin OET-65C RSS-210 RSS-102 AS/NZS 4268.2003 ARIB-STD 66 (Japan) ARIB-STD T71 (Japan) EN 300 328 EN 301 893 FCC part 15.107, 15.109 ICES-003 EN 301 489-1, -17 |
| Antenna | |
| Number of connectors | 3 |
| Antenna type | External |
| Antenna connector type | N-type |
| Antenna features | Detachable antenna |
| Technical details | |
| Transmitting power | 28 dBmW |
| Indication | |
| LED indicators | Yes |
| Software | |
| Dynamic Frequency Selection (DFS) | Yes |
| Data unit aggregation | A-MSDU, A-MPDU |
| Cyclic Shift Diversity (CSD) | Yes |
| Weight & dimensions | |
| Width | 312 mm |
| Depth | 229 mm |
| Weight | 8 kg |
| Height | 163 mm |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 55 °C |
| Storage temperature (T-T) | -50 - 85 °C |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
Manufacturer
Cisco
