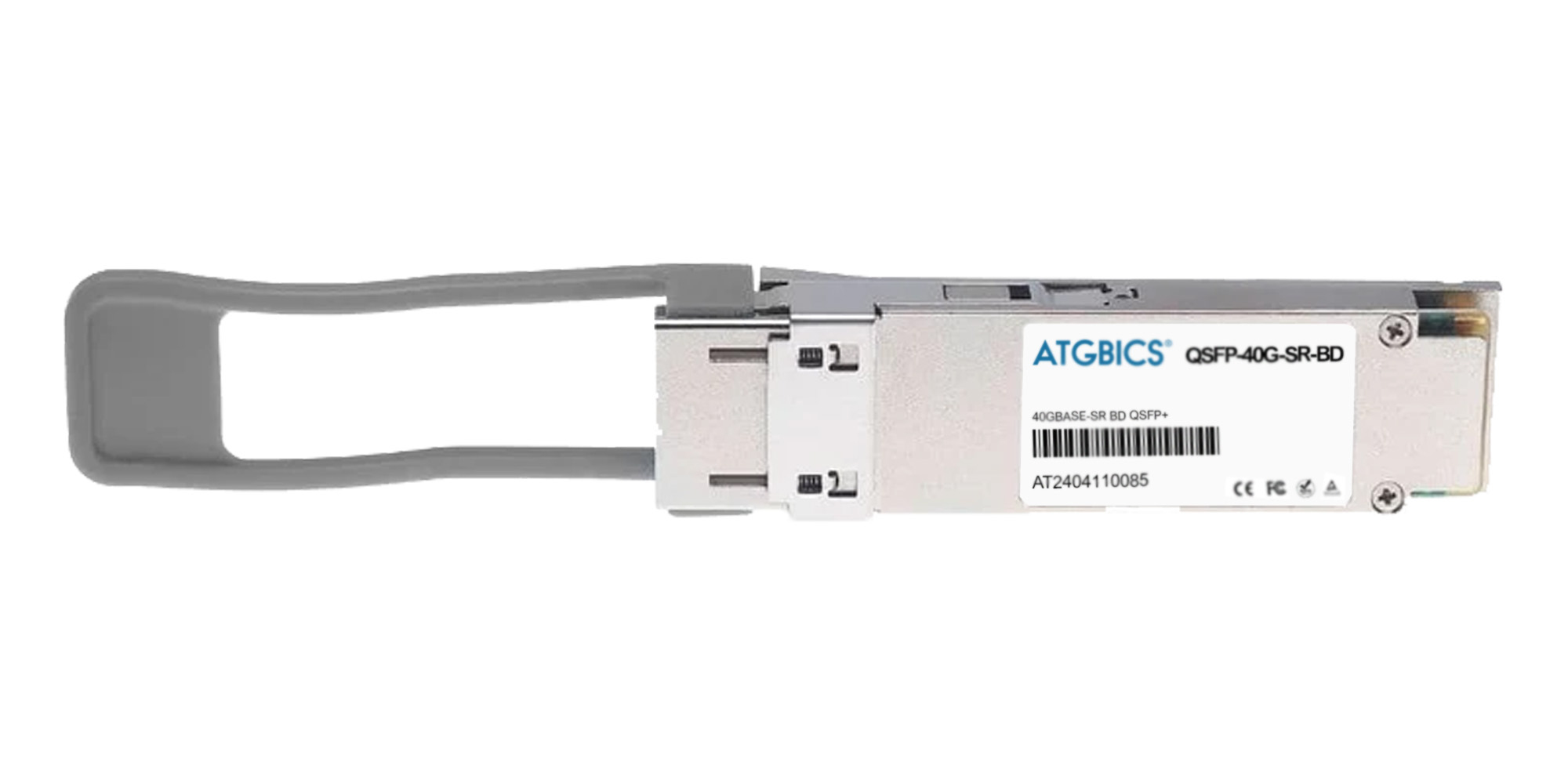

ATGBICS AFBR-79EBPZ Avago Broadcom Compatible Transceiver QSFP+ 40GBase-SR-BiDi (832-918nm MMF 150m LC DOM)
AFBR-79EBPZ Avago Broadcom Compatible Transceiver QSFP+ 40GBase-SR-BiDi (832-918nm MMF 150m LC DOM)
Part#:
AFBR-79EBPZ-C
Manufacturer:
ATGBICS
Excl. VAT: £1,554.00
Available to Backorder: contact for lead time
ATGBICS Avago Broadcom compatible AFBR-79EBPZ QSFP+ 40GBase-SRBD form factor network transceiver supports a distance of up to 150m over multi-mode fibre (MMF) using a wavelength of 832-918nm via an LC Duplex connector. This product operates within a commercial temperature range. Digital optical monitoring (DOM) support is also present enabling real-time monitoring of the parameters of the fibre optic transceiver. Our product meets the specification of Avago Broadcom AFBR-79EBPZ and we proudly offer a compatibility guarantee and limited lifetime warranty. Our rigorously tested products record a unique traceable serial number and are fully compliant with all MSA (Multi-Source Agreement) and IEEE standards & protocols.
More Information
Part#
AFBR-79EBPZ-C
EAN
5056468754257
Specification
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Ethernet LAN | Yes |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber optic connector | LC |
| Maximum transfer distance | 150 m |
| Wavelength | 918 nm |
| Maximum data transfer rate | 40000 Mbit/s |
| Interface type | QSFP+ |
| Single-mode fiber (SMF) supported | No |
| Multi-mode fiber (MMF) supported | Yes |
| Ethernet interface type | 40 Gigabit Ethernet |
| SFP transceiver standard | BX, SR |
| Fiber ethernet cabling technology | 40GBASE |
| Country of origin | United Kingdom |
| Easy to install | Yes |
| Product colour | Silver |
| Housing material | Metal |
| Plug and Play | Yes |
| Hot-swap | Yes |
| Brand compatibility | Avago Technologies |
| Features | |
| Easy to install | Yes |
| Product colour | Silver |
| Housing material | Metal |
| Plug and Play | Yes |
| Hot-swap | Yes |
| Brand compatibility | Avago Technologies |
| Country of origin | United Kingdom |
| Certification | CE, FCC, RoHS, REACH |
| Power | |
| Maximum voltage | 3.5 V |
| Input voltage | 3.3 V |
| Power consumption (typical) | 2.5 W |
| Certificates | |
| Certification | CE, FCC, RoHS, REACH |
| Compliance certificates | TÜV mark, UKCA, UL, US FDA, REACH, Federal Communications Commission (FCC), RoHS, CE |
| Sustainability | |
| Sustainability compliance | Yes |
| Doesn't contain | Lead |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Maximum data transfer rate | 40000 Mbit/s |
| Interface type | QSFP+ |
| Ethernet interface type | 40 Gigabit Ethernet |
| Weight & dimensions | |
| Width | 13.5 mm |
| Depth | 72.4 mm |
| Height | 18.4 mm |
| Weight | 100 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Package type | Box |
| Technical details | |
| Plug and Play | Yes |
| Hot-swap | Yes |
| Maximum transfer distance | 150 m |
| Wavelength | 918 nm |
| Ethernet LAN | Yes |
| Sustainability compliance | Yes |
| Doesn't contain | Lead |
| Compliance certificates | TÜV mark, UKCA, UL, US FDA, REACH, Federal Communications Commission (FCC), RoHS, CE |
| Packaging data | |
| Package type | Box |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Country of origin | United Kingdom |
