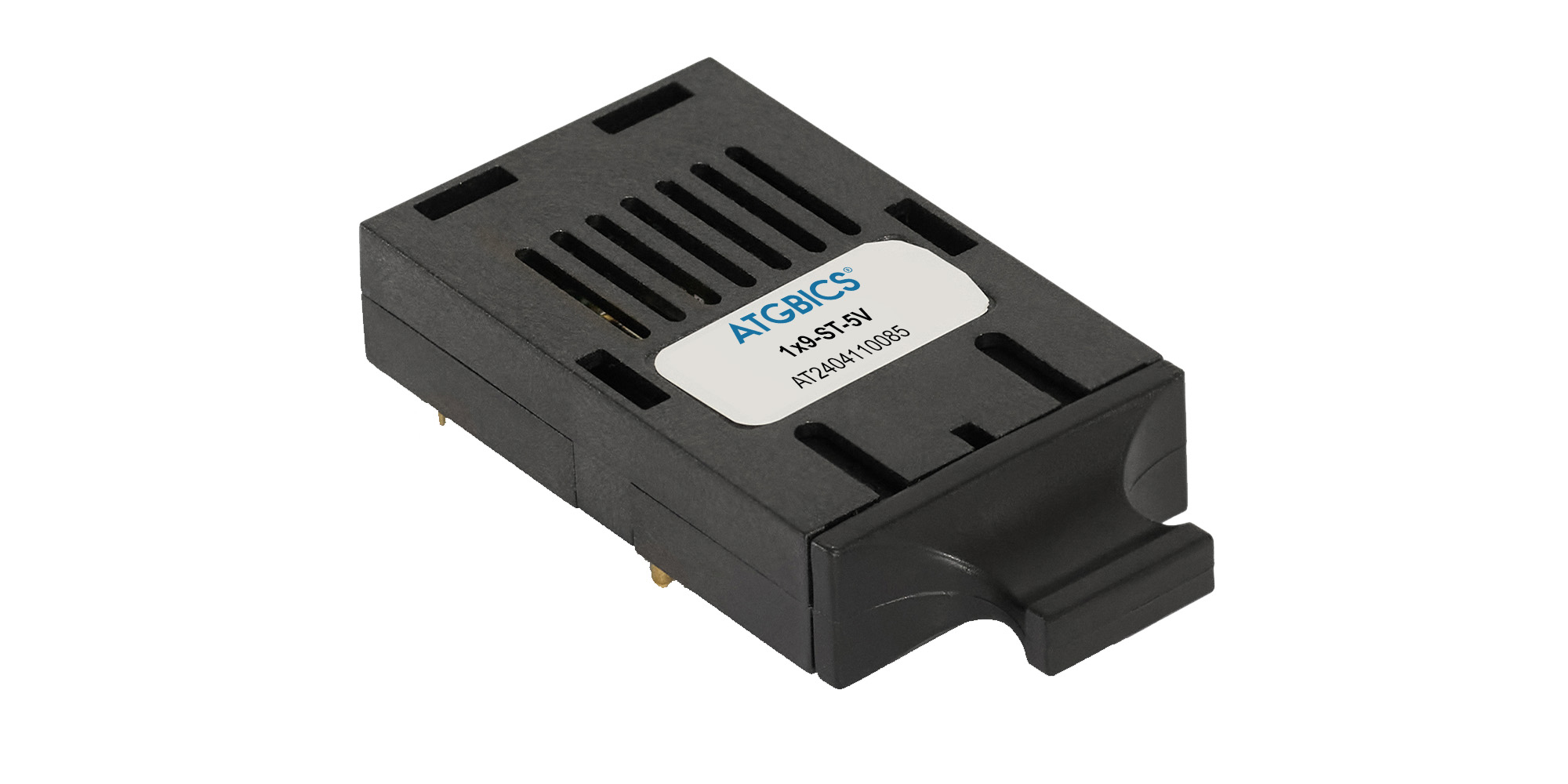

ATGBICS AFBR-5205TZ Avago Broadcom compatible Transceiver 1x9 for ATM SONET OC-3/SDH STM-1 Black Case (1300nm 155Mbps MMF 2km ST 5v)
AFBR-5205TZ Avago Broadcom compatible Transceiver 1x9 for ATM SONET OC-3/SDH STM-1 Black Case (1300nm 155Mbps MMF 2km ST 5v)
Part#:
AFBR-5205TZ-C
Manufacturer:
ATGBICS
Excl. VAT: £38.00
Available to Backorder: contact for lead time
ATGBICS Avago Broadcom® compatible AFBR-5205TZ 1x9 Through hole form factor network transceiver supports a distance of up to 2km over multi-mode fibre (MMF) using a wavelength of 1300nm via an ST Duplex connector. This product operates within a commercial temperature range. Our product meets the specification of Avago Broadcom® AFBR-5205TZ and we proudly offer a compatibility guarantee and limited lifetime warranty. Our rigorously tested products record a unique traceable serial number and are fully compliant with all MSA (Multi-Source Agreement) and IEEE standards & protocols.
More Information
Part#
AFBR-5205TZ-C
EAN
5056468771841
Specification
| Performance | |
|---|---|
| Ethernet LAN | Yes |
| Digital Diagnostics Monitoring (DDM) | No |
| Fiber optic connector | ST |
| Maximum transfer distance | 2000 m |
| Wavelength | 1300 nm |
| Maximum data transfer rate | 155 Mbit/s |
| Interface type | 1x9 |
| Single-mode fiber (SMF) supported | No |
| Multi-mode fiber (MMF) supported | Yes |
| Ethernet interface type | Fast Ethernet |
| Fiber ethernet cabling technology | 100BASE |
| Export Control Classification Number (ECCN) | 5A991 |
| Country of origin | China, Taiwan |
| Easy to install | Yes |
| Product colour | Black |
| Housing material | Plastic |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Brand compatibility | Avago Technologies |
| Features | |
| Easy to install | Yes |
| Product colour | Black |
| Housing material | Plastic |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Brand compatibility | Avago Technologies |
| Country of origin | China, Taiwan |
| Certification | CE, EMC, FCC, REACH, RoHS, TÜV |
| Certificates | |
| Certification | CE, EMC, FCC, REACH, RoHS, TÜV |
| Compliance certificates | TÜV mark, UKCA, Electromagnetic Compatibility (EMC), REACH, Federal Communications Commission (FCC), RoHS, CE |
| Sustainability | |
| Doesn't contain | Lead |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Network | |
| Fiber optic connector | ST |
| Maximum data transfer rate | 155 Mbit/s |
| Interface type | 1x9 |
| Ethernet interface type | Fast Ethernet |
| Technical details | |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Maximum transfer distance | 2000 m |
| Wavelength | 1300 nm |
| Ethernet LAN | Yes |
| Doesn't contain | Lead |
| Compliance certificates | TÜV mark, UKCA, Electromagnetic Compatibility (EMC), REACH, Federal Communications Commission (FCC), RoHS, CE |
| Logistics data | |
| Country of origin | China, Taiwan |
Manufacturer
ATGBICS
