ATGBICS A-D400-2Q200-3M Arista compatible Active Optical Breakout Cable 400GBase QSFP-DD to 2x200GBase QSFP56 (850nm MMF 3m)

A-D400-2Q200-3M Arista compatible Active Optical Breakout Cable 400GBase QSFP-DD to 2x200GBase QSFP56 (850nm MMF 3m)
Part#:
A-D400-2Q200-3M-C
Manufacturer:
ATGBICS
Excl. VAT: £574.00
Available to Backorder: contact for lead time

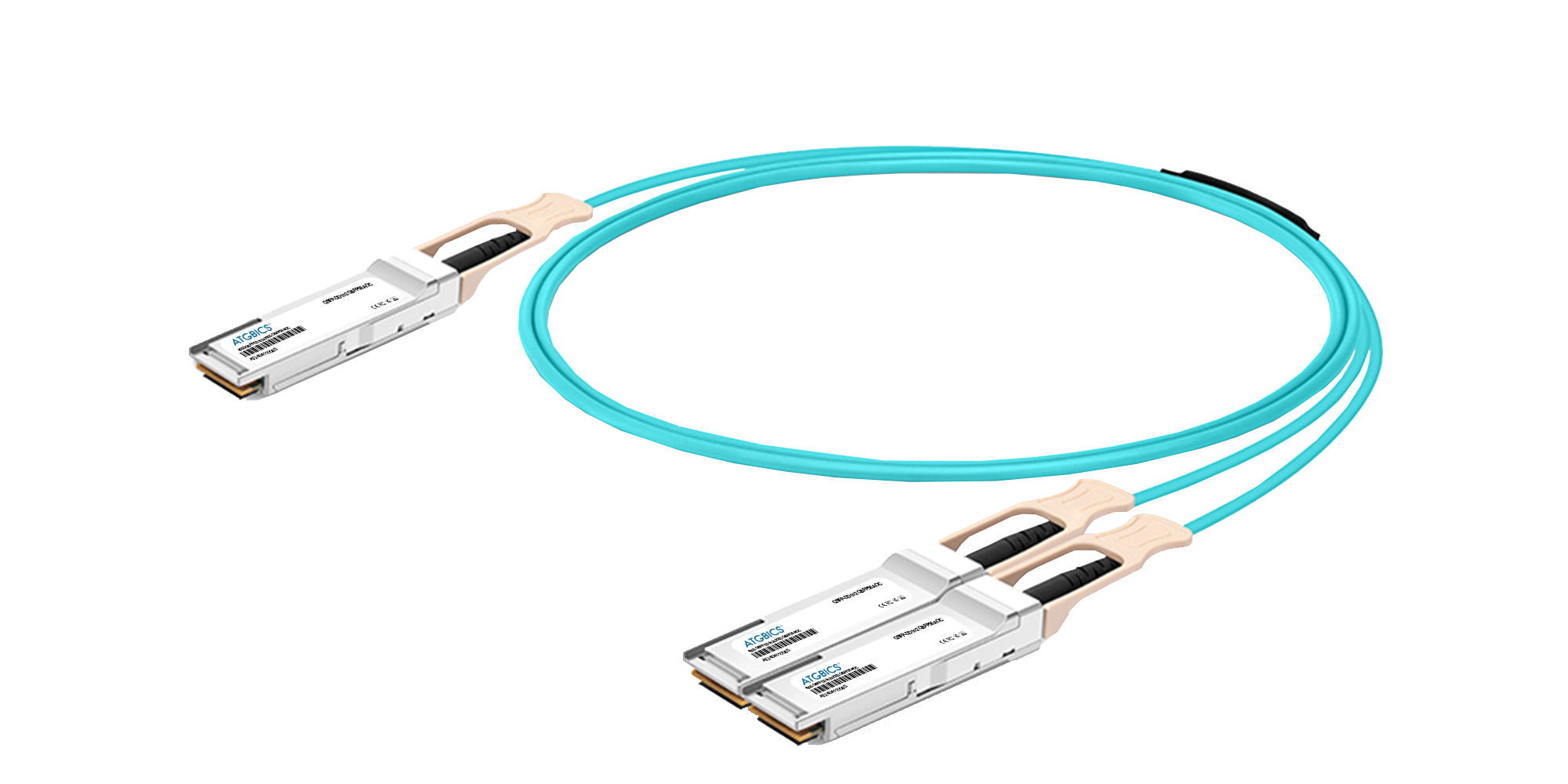

ATGBICS Arista compatible A-D400-2Q200-3M 400GBase QSFP-DD to 2 QSFP56 Active Optical Cable operates over Active Fibre using a wavelength of 850nm over MMF with a cable length of 3m. This product operates within a commercial temperature range. It is suitable for short reach connection between 400G QSFP-DD and 200G QSFP56 enabled host adapters, switches, and servers in 400G interconnecting networking applications and provides a cost-efficient way to connect hardware within close proximity racks. This breakout cable connects to 1 x 400G QSFP-DD port on one end and to 2 x 200G QSFP56 ports on the other end. Our product meets the specification of Arista A-D400-2Q200-3M and we proudly offer a compatibility guarantee and limited lifetime warranty. Our rigorously tested products record a unique traceable serial number and are fully compliant with all MSA (Multi-Source Agreement) and IEEE standards & protocols.
More Information
Part#
A-D400-2Q200-3M-C
Specification
Features
Jacket materialOptical fiber non-conductive plenum (OFNP), Low smoke zero halogen (LSZH)
Connector 1QSFP-DD
Connector 22x QSFP56
Cable typeAOC
Cable length3 m
Data transfer rate400000 Gbit/s
Ethernet interface type400 Gigabit Ethernet
Brand compatibilityArista Networks
Wavelengths supported850 nm
Export Control Classification Number (ECCN)5A991
Product colourAqua colour, Orange
Plug and PlayYes
Cable shapeRound
Fastening typePush–pull
Bending radius3 cm
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
CertificationCE, EMC, FCC, REACH, RoHS, TÜV
Country of originUnited Kingdom
Sustainability
Doesn't containLead, Halogen
Certificates
CertificationCE, EMC, FCC, REACH, RoHS, TÜV
Compliance certificatesTÜV mark, UKCA, Electromagnetic Compatibility (EMC), REACH, Federal Communications Commission (FCC), RoHS, CE
Operational conditions
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Weight & dimensions
Bending radius3 cm
Cable length3 m
Packaging content
Quantity per pack1 pc(s)
Technical details
Jacket materialOptical fiber non-conductive plenum (OFNP), Low smoke zero halogen (LSZH)
Connector 1QSFP-DD
Connector 22x QSFP56
Cable typeAOC
Cable length3 m
Doesn't containLead, Halogen
Compliance certificatesTÜV mark, UKCA, Electromagnetic Compatibility (EMC), REACH, Federal Communications Commission (FCC), RoHS, CE
Data transmission
Data transfer rate400000 Gbit/s
Packaging data
Quantity per pack1 pc(s)
Logistics data
Quantity per pack1 pc(s)
Country of originUnited Kingdom
Manufacturer
ATGBICS
