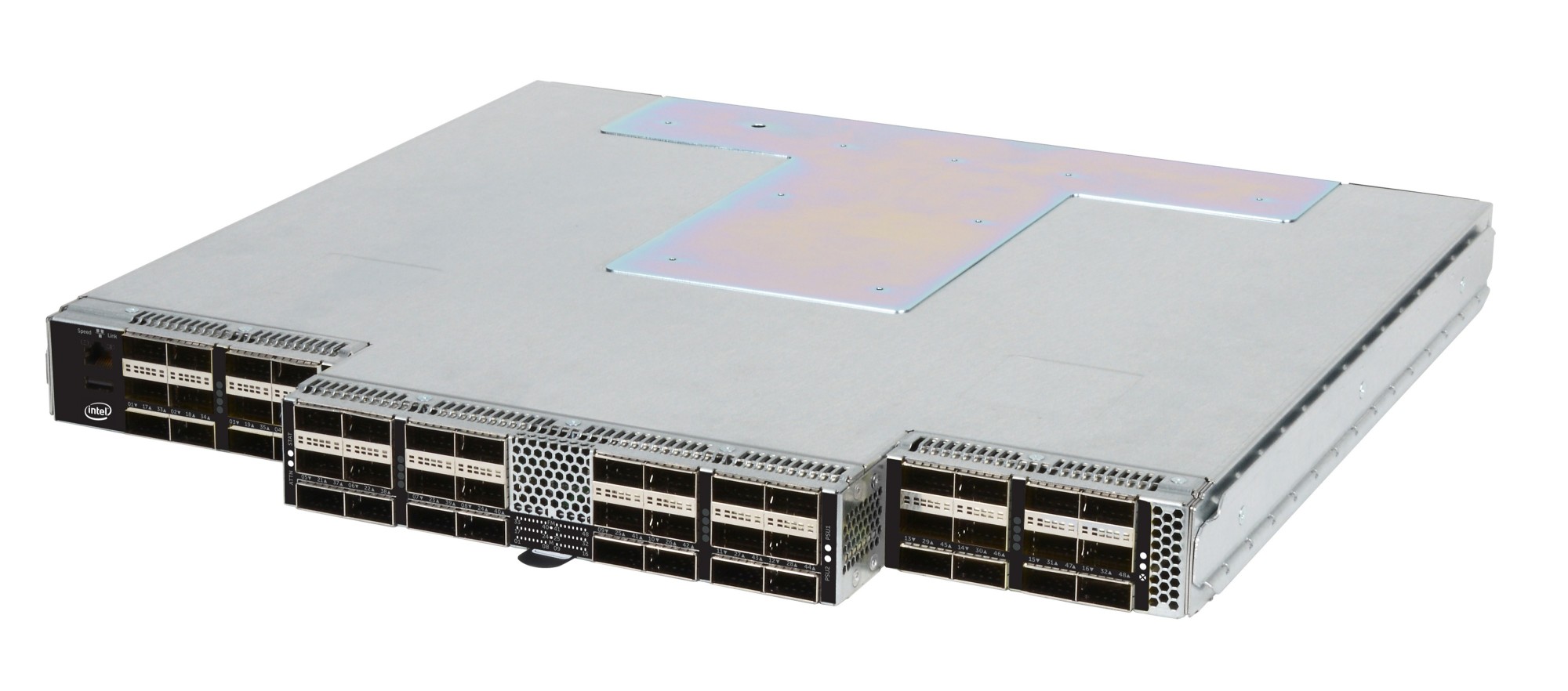

HPE 829911-B21 - Intel OPA 48p Managed Switch
Intel Omni-Path Architecture 100Gb 48-port Managed Switch
Part#:
829911-B21
Manufacturer:
HPE
Excl. VAT: £20,211.00
Available to Backorder: contact for lead time
Does your high performance computing (HPC) data center require high speed fabric infrastructure? The HPE Apollo 100GbE 48-port Intel Omni-Path Architecture Unmanaged Switch is an integrated option in the HPE Apollo 6000 Gen10 System with 24 downlink ports and 24 uplink ports. It cost-effectively supports large HPC clusters and delivers an exceptional set of high-speed connectivity features and functions. It is ideal for customers who deploy HPC clusters based on the HPE Apollo 6000 Gen10 Systems using the Intel Omni-Path technology.
More Information
Part#
829911-B21
EAN
0889894032270
Specification
| Management features | |
|---|---|
| Switch type | Managed |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 0 |
| Basic switching RJ-45 Ethernet ports type | No |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Console port | USB |
| QSFP28 ports quantity | 48 |
| Switching optical modules type | 100 Gigabit Ethernet |
| Optical fiber | |
| Switching optical modules type | 100 Gigabit Ethernet |
| Data transmission | |
| Throughput | 9600 Mpps |
| MAC address table | 8192 entries |
| Design | |
| Form factor | 1U |
| Product colour | Metallic |
| Rack mounting | Yes |
| Performance | |
| Built-in processor | Yes |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 238 W |
| Number of power supply units | 2 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Weight & dimensions | |
| Width | 439.6 mm |
| Depth | 426.7 mm |
| Height | 43.2 mm |
| Weight | 6.67 kg |
| Technical details | |
| Form factor | 1U |
| Product colour | Metallic |
| Rack mounting | Yes |
| Built-in processor | Yes |
Manufacturer
HPE
