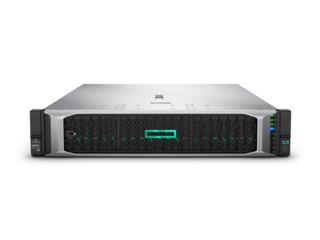

HPE 826565-B21 - DL380 Gen10 4114 32G 8SFF Renew Svr
HPE ProLiant DL380 Gen10 4114 2.2GHz 10-core 1P 32GB-R P408i-a 8SFF 500W Base Renew Server
Part#:
826565R-B21
Manufacturer:
HPE
Excl. VAT: £3,494.00
Available to Backorder: contact for lead time
HPE ProLiant DL380 Gen10 4114 2.2GHz 10-core 1P 32GB-R P408i-a 8SFF 500W Base Renew Server
More Information
Part#
826565R-B21
EAN
4549821162505
Specification
| Processor | |
|---|---|
| Processor generation | 1st Generation Intel® Xeon® Scalable |
| Thermal Design Power (TDP) | 85 W |
| Tcase | 78 °C |
| Supported instruction sets | AVX, AVX 2.0, AVX-512, SSE4.2 |
| Stepping | U0 |
| Scalability | 2S |
| Processor threads | 20 |
| Processor package size | 76.0 x 56.5 mm |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Skylake |
| Processor code | SR3GK |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2400 MHz |
| Memory channels supported by processor | Hexa |
| Maximum number of PCI Express lanes | 48 |
| Maximum internal memory supported by processor | 768 GB |
| Execute Disable Bit | Yes |
| Embedded options available | No |
| ECC supported by processor | Yes |
| Bus type | UPI |
| Processor cache type | L3 |
| Processor cache | 13.75 MB |
| Conflict-Free processor | Yes |
| Processor frequency | 2.2 GHz |
| Processor boost frequency | 3 GHz |
| Number of processors installed | 1 |
| Processor model | 4114 |
| Processor socket | LGA 3647 (Socket P) |
| Processor cores | 10 |
| Processor manufacturer | Intel |
| Motherboard chipset | Intel® C621 |
| Processor family | Intel® Xeon® |
| Memory | |
| Internal memory | 32 GB |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 24x DIMM |
| Memory clock speed | 2600 MHz |
| Maximum internal memory | 768 GB |
| Internal memory type | DDR4-SDRAM |
| Storage | |
| Supported storage drive interfaces | Serial ATA, Serial Attached SCSI |
| Supported HDD sizes | 2.5" |
| RAID support | Yes |
| Optical drive type | No |
| Number of HDDs supported | 8 |
| Maximum storage capacity | 72 TB |
| Network | |
| LAN controller | HP 331i |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 4 |
| DisplayPorts quantity | 1 |
| Expansion slots | |
| PCI Express slots version | 3.0 |
| Optical drive | |
| Optical drive type | No |
| Design | |
| Rack mounting | Yes |
| Optical drive type | No |
| Chassis type | Rack (2U) |
| Performance | |
| Compatible operating systems | Windows Server 2012 R2 Windows Server 2016 VMware ESXi 6.0 U3 VMware ESXi 6.5 & U1 Red Hat Enterprise Linux (RHEL) 6.9 & 7.3 SUSE Linux Enterprise Server (SLES) 11 SP4 & 12 SP2 ClearOS CentOS |
| Operating system installed | No |
| Software | |
| Compatible operating systems | Windows Server 2012 R2 Windows Server 2016 VMware ESXi 6.0 U3 VMware ESXi 6.5 & U1 Red Hat Enterprise Linux (RHEL) 6.9 & 7.3 SUSE Linux Enterprise Server (SLES) 11 SP4 & 12 SP2 ClearOS CentOS |
| Operating system installed | No |
| Processor special features | |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 1.00 |
| Processor ARK ID | 123550 |
| Power | |
| Number of main power supplies | 1 |
| Redundant power supply (RPS) support | No |
| Power supply | 500 W |
| Technical details | |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Supported HDD sizes | 2.5" |
| Rack mounting | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Chassis type | Rack (2U) |
| Sustainability certificates | ENERGY STAR |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Width | 445.5 mm |
| Weight | 14.8 kg |
| Height | 87.4 mm |
| Depth | 730.3 mm |
Manufacturer
HPE
