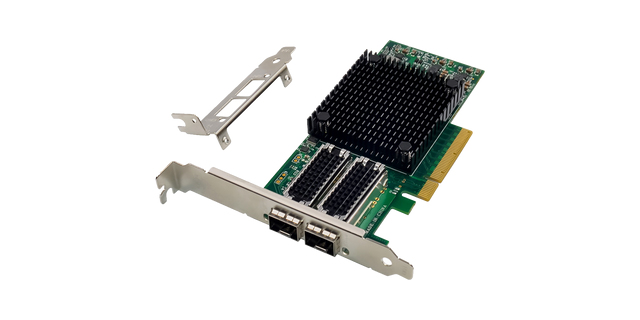

ATGBICS 817753-B21-C network card Internal Ethernet 25000 Mbit/s
HPE® 817753-B21 alternative NVIDIA ConnectX-4 NIC PCIe 3.0 x8 Dual Port 25GbE SFP28
Part#:
817753-B21-C
Manufacturer:
ATGBICS
Excl. VAT: £114.00
Available to Backorder: contact for lead time
HPE 817753-B21 alternative NVIDIA ConnectX-4 NIC PCIe 3.0 x8 Dual Port 25GbE SFP28
More Information
Part#
817753-B21-C
Specification
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 3.0 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP28 |
| PCI Card form factor | Full-height (low-profile) |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 25000 Mbit/s |
| Technical details | |
| Product colour | Green |
| PCI Card form factor | Full-height (low-profile) |
| Country of origin | China |
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS |
| Network | |
| Ethernet interface type | 25 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 1588v2, IEEE 802.1AX, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3by, IEEE 802.3p, IEEE 802.3q |
| LAN controller | NVIDIA ConnectX-4 |
| Ethernet LAN data rates | 1000,10000,25000 Mbit/s |
| Maximum data transfer rate | 25000 Mbit/s |
| Design | |
| Product colour | Green |
| Internal | Yes |
| PCI Card form factor | Full-height (low-profile) |
| Country of origin | China |
| Component for | PC/Server |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Weight & dimensions | |
| Width | 145 mm |
| Depth | 69 mm |
| Other features | |
| Country of origin | China |
Manufacturer
ATGBICS
