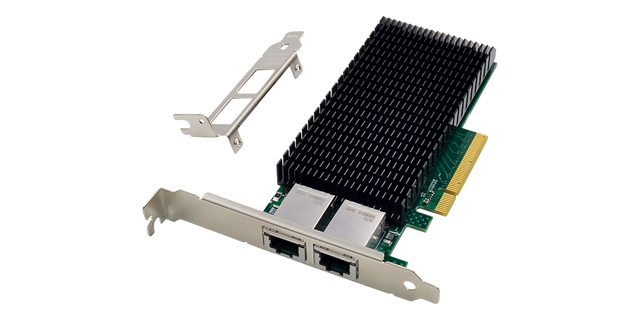

ATGBICS 656596-B21-C network card Internal Ethernet 10000 Mbit/s
HPE® 656596-B21 alternative Intel X540 NIC PCIe 2.1 x8 Dual Port 10GbE RJ45
Part#:
656596-B21-C
Manufacturer:
ATGBICS
Excl. VAT: £80.00
In stock
HPE 656596-B21 alternative Intel X540 NIC PCIe 2.1 x8 Dual Port 10GbE RJ45
More Information
Part#
656596-B21-C
Specification
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 2 |
| PCI Card form factor | Full-height (low-profile) |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 10000 Mbit/s |
| Network | |
| Chipset | Intel® X540 |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad |
| LAN controller | Intel® X540-AT2 |
| Ethernet LAN data rates | 100,1000,10000 Mbit/s |
| Maximum data transfer rate | 10000 Mbit/s |
| Technical details | |
| Product colour | Green |
| PCI Card form factor | Full-height (low-profile) |
| Country of origin | China |
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS |
| Design | |
| Product colour | Green |
| Chipset | Intel® X540 |
| Internal | Yes |
| PCI Card form factor | Full-height (low-profile) |
| Country of origin | China |
| Component for | PC/Server |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Weight & dimensions | |
| Width | 145 mm |
| Depth | 69 mm |
| Other features | |
| Chipset | Intel® X540 |
| Country of origin | China |
Manufacturer
ATGBICS
