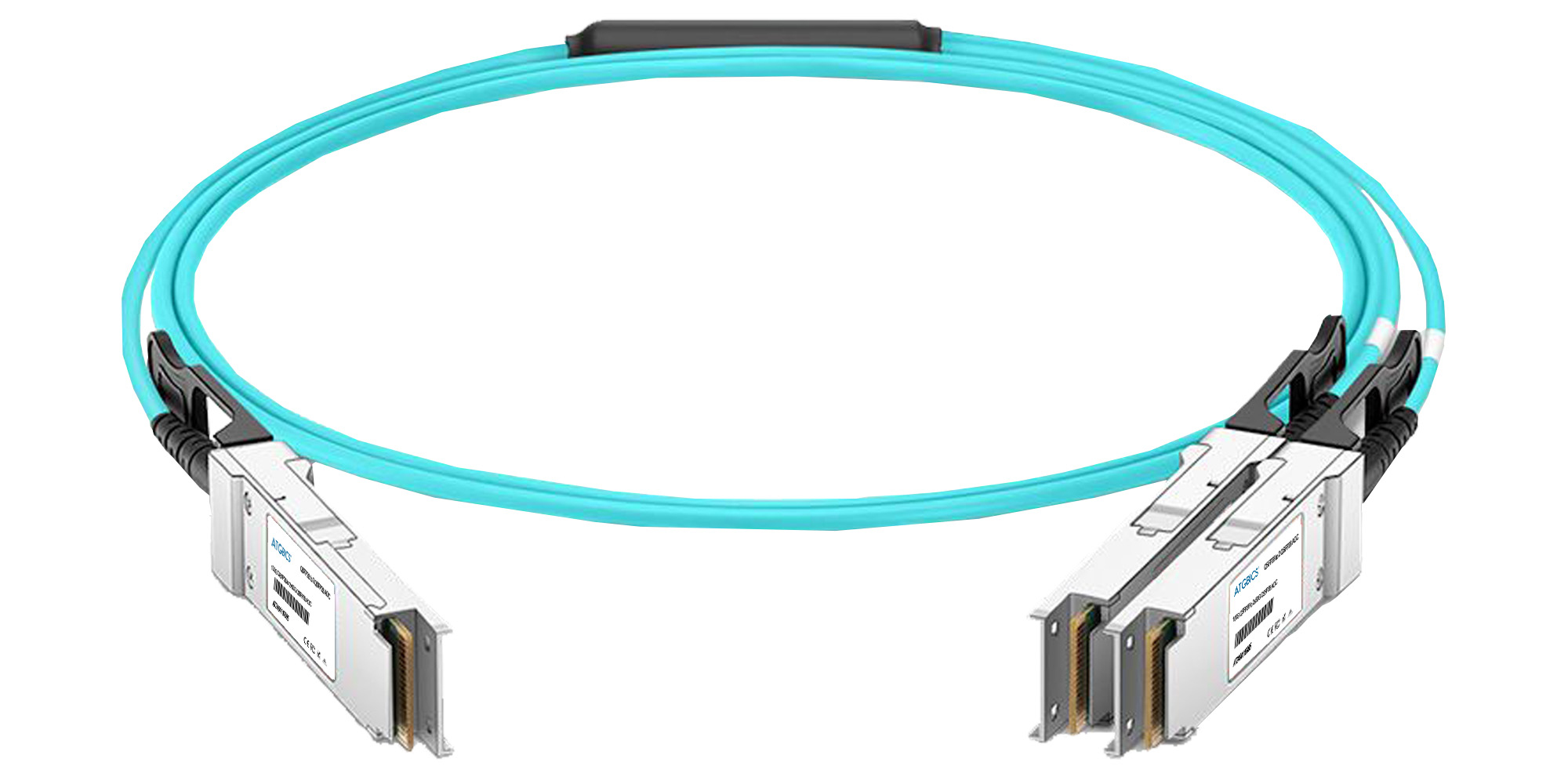

ATGBICS 10449 Extreme Enterasys compatible Active Optical Breakout Cable 100GBase QSFP28 to 2x50GBase QSFP28 (850nm MMF 20m)
10449 Extreme Enterasys compatible Active Optical Breakout Cable 100GBase QSFP28 to 2x50GBase QSFP28 (850nm MMF 20m)
Part#:
10449-C
Manufacturer:
ATGBICS
Excl. VAT: £516.00
Available to Backorder: contact for lead time
ATGBICS Extreme Enterasys compatible 10449 100GBase QSFP28 to 2 QSFP28 Active Optical Cable operates over Active Fibre using a wavelength of 850nm over MMF with a cable length of 20m. This product operates within a commercial temperature range. It is suitable for short reach connection between 100G QSFP28 and 25G SFP28 enabled host adapters, switches, and servers in 100G interconnecting networking applications and provides a cost-efficient way to connect hardware within close proximity racks. This breakout cable connects to 1 x 100G QSFP28 port on one end and to 4 x 25G SFP28 ports on the other end. Our product meets the specification of Extreme Enterasys 10449 and we proudly offer a compatibility guarantee and limited lifetime warranty. Our rigorously tested products record a unique traceable serial number and are fully compliant with all MSA (Multi-Source Agreement) and IEEE standards & protocols.
More Information
Part#
10449-C
Specification
Features | |
---|---|
Jacket material | Optical fiber non-conductive plenum (OFNP), Low smoke zero halogen (LSZH) |
Fiber mode structure | Multi-mode |
Connector 1 | QSFP28 |
Connector 2 | 2x QSFP28 |
Cable type | AOC |
Cable length | 20 m |
Data transfer rate | 100000 Gbit/s |
Ethernet interface type | 100 Gigabit Ethernet |
Brand compatibility | Extreme Networks |
Wavelengths supported | 850 nm |
Export Control Classification Number (ECCN) | 5A991 |
Product colour | Aqua colour, Orange |
Connector 2 gender | Male |
Connector 1 gender | Male |
Plug and Play | Yes |
Cable shape | Round |
Fastening type | Push–pull |
Bending radius | 3 cm |
Operating temperature (T-T) | 0 - 70 °C |
Storage temperature (T-T) | -40 - 85 °C |
Certification | CE, EMC, FCC, REACH, RoHS, TÜV |
Country of origin | United Kingdom |
Sustainability | |
Doesn't contain | Lead, Halogen |
Certificates | |
Certification | CE, EMC, FCC, REACH, RoHS, TÜV |
Compliance certificates | TÜV mark, UKCA, Electromagnetic Compatibility (EMC), REACH, Federal Communications Commission (FCC), RoHS, CE |
Operational conditions | |
Operating temperature (T-T) | 0 - 70 °C |
Storage temperature (T-T) | -40 - 85 °C |
Weight & dimensions | |
Bending radius | 3 cm |
Cable length | 20 m |
Packaging content | |
Quantity per pack | 1 pc(s) |
Technical details | |
Jacket material | Optical fiber non-conductive plenum (OFNP), Low smoke zero halogen (LSZH) |
Fiber mode structure | Multi-mode |
Connector 1 | QSFP28 |
Connector 2 | 2x QSFP28 |
Cable type | AOC |
Cable length | 20 m |
Doesn't contain | Lead, Halogen |
Compliance certificates | TÜV mark, UKCA, Electromagnetic Compatibility (EMC), REACH, Federal Communications Commission (FCC), RoHS, CE |
Data transmission | |
Data transfer rate | 100000 Gbit/s |
Packaging data | |
Quantity per pack | 1 pc(s) |
Logistics data | |
Quantity per pack | 1 pc(s) |
Country of origin | United Kingdom |
Manufacturer
ATGBICS
