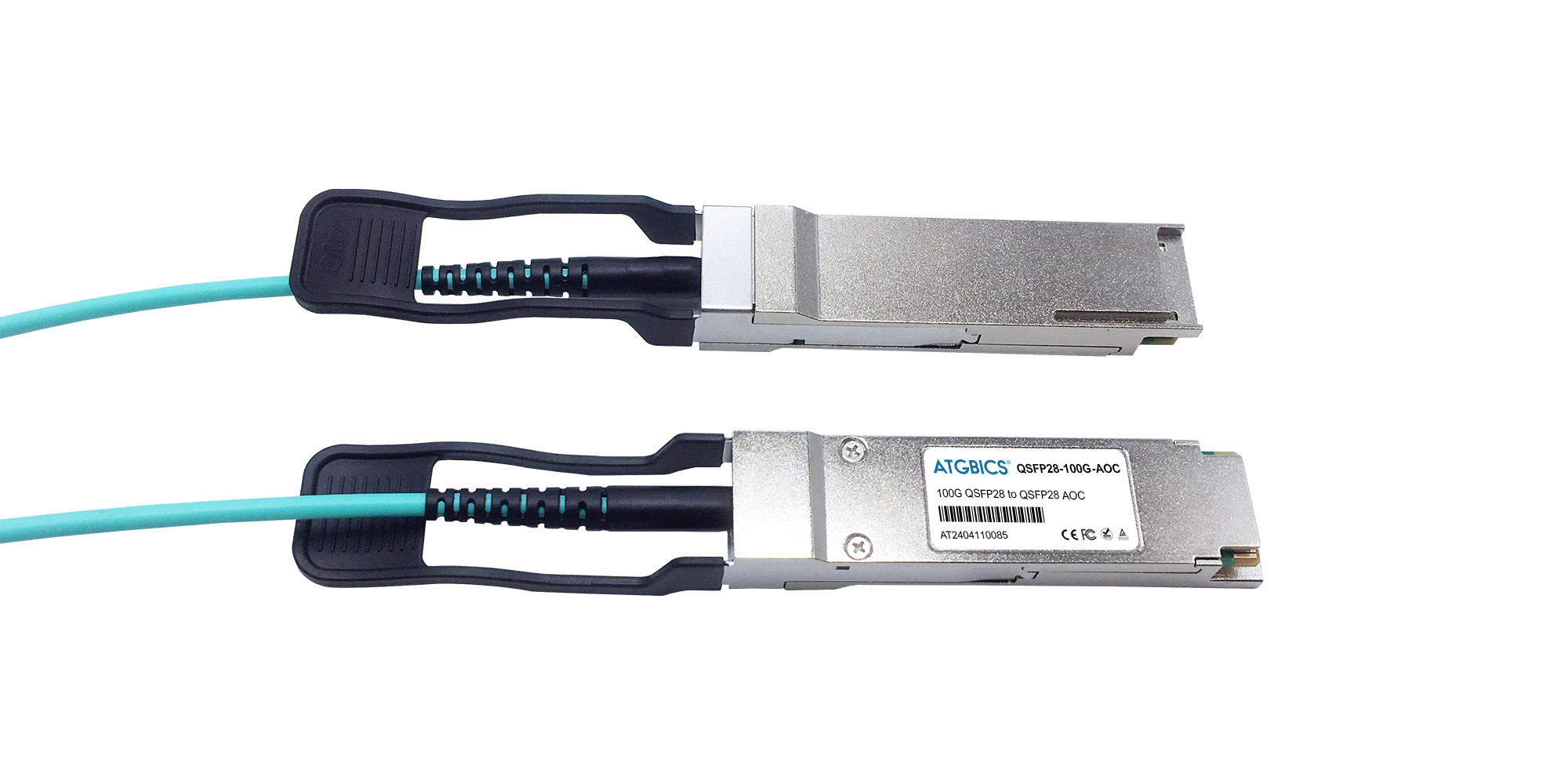

ATGBICS 0T6PW Dell compatible Active Optical Cable 100GBase QSFP28 InfiniBand EDR(850nm MMF 10m)
0T6PW Dell compatible Active Optical Cable 100GBase QSFP28 InfiniBand EDR(850nm MMF 10m)
Part#:
0T6PW-C
Manufacturer:
ATGBICS
Excl. VAT: £128.00
In stock
ATGBICS Dell compatible 0T6PW 100GBase QSFP28 to QSFP28 Active Optical Cable operates over Active Fibre using a wavelength of 850nm over MMF with a cable length of 10m. This product operates within a commercial temperature range. It is suitable for short reach connection between two QSFP28 ports in 100G interconnecting networking applications. Our product meets the specification of Dell 0T6PW and we proudly offer a compatibility guarantee and limited lifetime warranty. Our rigorously tested products record a unique traceable serial number and are fully compliant with all MSA (Multi-Source Agreement) and IEEE standards & protocols.
More Information
Part#
0T6PW-C
Specification
| Features | |
|---|---|
| Jacket material | Optical fiber non-conductive plenum (OFNP), Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | QSFP28 |
| Connector 2 | QSFP28 |
| Cable type | AOC |
| Cable length | 10 m |
| Data transfer rate | 100 Gbit/s |
| Ethernet interface type | 100 Gigabit Ethernet |
| Brand compatibility | Dell |
| Wavelengths supported | 850 nm |
| Export Control Classification Number (ECCN) | 5A991 |
| Product colour | Aqua colour, Orange |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Plug and Play | Yes |
| Cable shape | Round |
| Fastening type | Push–pull |
| Bending radius | 3 cm |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Certification | CE, UKCA, EMC, FCC, REACH, RoHS, TÜV, FDA |
| Country of origin | China |
| Sustainability | |
| Doesn't contain | Lead, Halogen |
| Certificates | |
| Certification | CE, UKCA, EMC, FCC, REACH, RoHS, TÜV, FDA |
| Compliance certificates | TÜV mark, UKCA, UL, US FDA, REACH, Federal Communications Commission (FCC), RoHS, CE |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
| Bending radius | 3 cm |
| Cable length | 10 m |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Jacket material | Optical fiber non-conductive plenum (OFNP), Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | QSFP28 |
| Connector 2 | QSFP28 |
| Cable type | AOC |
| Cable length | 10 m |
| Doesn't contain | Lead, Halogen |
| Compliance certificates | TÜV mark, UKCA, UL, US FDA, REACH, Federal Communications Commission (FCC), RoHS, CE |
| Data transmission | |
| Data transfer rate | 100 Gbit/s |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Country of origin | China |
Manufacturer
ATGBICS
