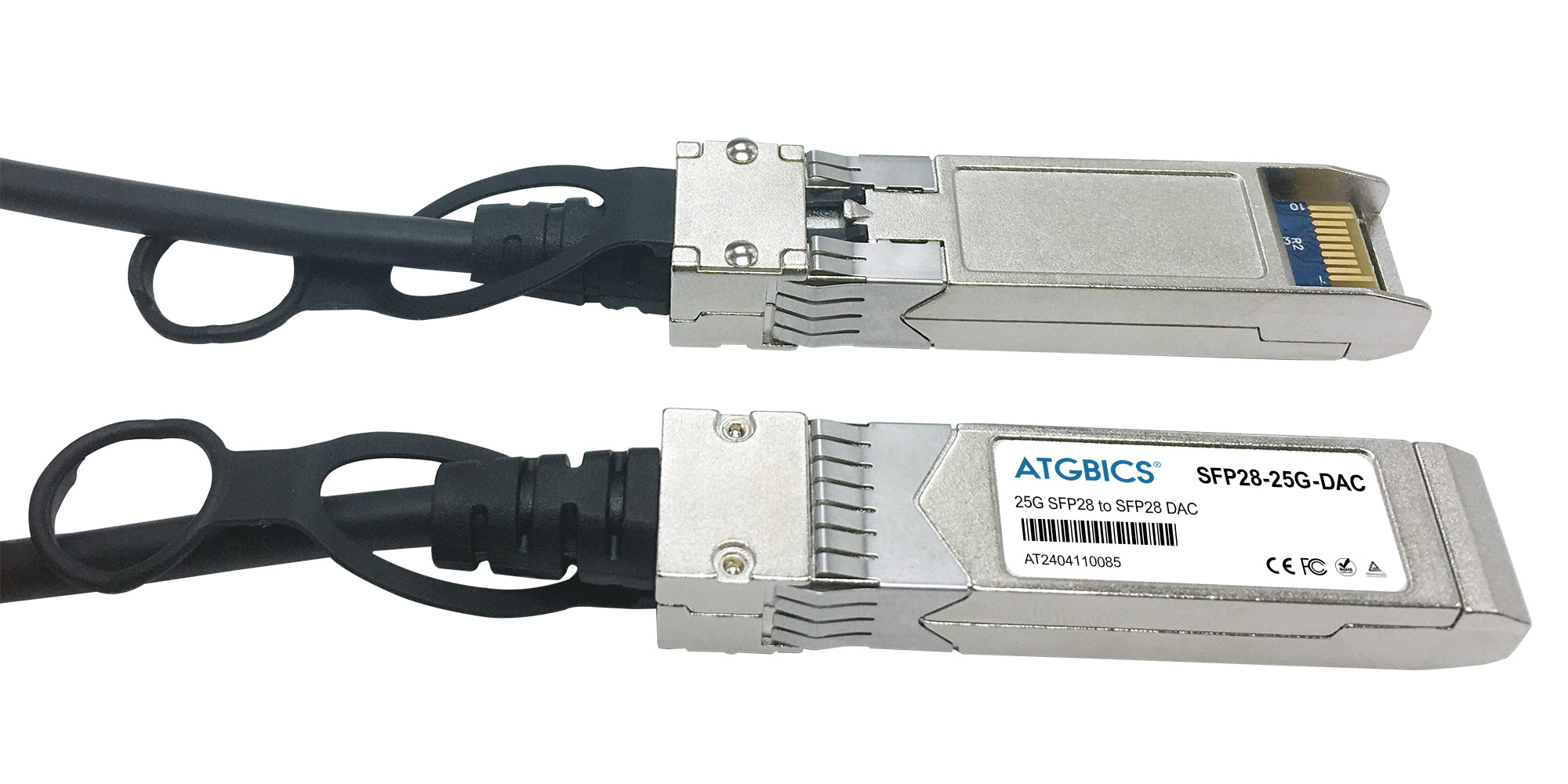

ATGBICS 00YD295 Lenovo compatible Direct Attach Copper Cable 25GBase-CU SFP28 (Passive Twinax 1m)
00YD295 Lenovo compatible Direct Attach Copper Cable 25GBase-CU SFP28 (Passive Twinax 1m)
Part#:
00YD295-C
Manufacturer:
ATGBICS
Excl. VAT: £50.00
Available to Backorder: contact for lead time
ATGBICS Lenovo compatible 00YD295 25GBase-CU SFP28 to SFP28 Passive Direct Attach Cable operates over Passive Copper with a cable length of 1m. This product operates within a commercial temperature range. It is suitable for short reach connection between two SFP28 ports in 25G interconnecting networking applications. Our product meets the specification of Lenovo 00YD295 and we proudly offer a compatibility guarantee and limited lifetime warranty. Our rigorously tested products record a unique traceable serial number and are fully compliant with all MSA (Multi-Source Agreement) and IEEE standards & protocols.
More Information
Part#
00YD295-C
Specification
| Features | |
|---|---|
| Jacket material | Optical fiber non-conductive riser (OFNR), Polyvinyl chloride (PVC) |
| Connector 1 | SFP28 |
| Connector 2 | SFP28 |
| Cable type | DAC |
| Cable length | 1 m |
| Data transfer rate | 25 Gbit/s |
| Ethernet interface type | 100 Gigabit Ethernet |
| Brand compatibility | Lenovo |
| Export Control Classification Number (ECCN) | 5A991 |
| Product colour | Black |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Plug and Play | Yes |
| Conductor material | Copper |
| AWG wire size | 30 |
| Cable shape | Round |
| Fastening type | Push–pull |
| InfiniBand protocol | Yes |
| Bending radius | 2.3 cm |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Certification | CE, UKCA, EMC, FCC, REACH, RoHS, TÜV, FDA |
| Country of origin | United Kingdom |
| Sustainability | |
| Doesn't contain | Lead, Halogen |
| Certificates | |
| Certification | CE, UKCA, EMC, FCC, REACH, RoHS, TÜV, FDA |
| Compliance certificates | TÜV mark, UKCA, UL, US FDA, REACH, Federal Communications Commission (FCC), RoHS, CE |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
| Bending radius | 2.3 cm |
| Cable length | 1 m |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Jacket material | Optical fiber non-conductive riser (OFNR), Polyvinyl chloride (PVC) |
| Connector 1 | SFP28 |
| Connector 2 | SFP28 |
| Cable type | DAC |
| Cable length | 1 m |
| Doesn't contain | Lead, Halogen |
| Compliance certificates | TÜV mark, UKCA, UL, US FDA, REACH, Federal Communications Commission (FCC), RoHS, CE |
| Data transmission | |
| Data transfer rate | 25 Gbit/s |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Country of origin | United Kingdom |
Manufacturer
ATGBICS
